LineTamer Power Line Conditioners

LineTamer Power Line Conditioners

LineTamer® power line conditioning products from Shape protect computers, telecommunications equipment, and other sensitive electronic circuits from the damage and disruptions that can be caused by power line disturbances, spikes, surges, brown-outs, over-voltage conditions, harmonics, surgical noise, and lighting strikes – in fact, just about anything short of a complete black-out.

Many of our LineTamer products are UL/CSA-recognized and most models are in stock and ready to ship. Custom products are also available. Products include:

CLT and ILT Hard Wired Line Conditioners

Specifications
Power Ratings: 30 VA to 15 KVA and larger
Lightning and Surge Protection: ANSI/IEEE C62.41. Categories A and B
Noise (RF) Isolation: 120 dB common mode; 60 dB normal mode for CLT models, and 95 dB common mode; 50 dB normal mode for ILT models
Input Voltage: +10% / -20% of nominal input voltage
Output Voltage Regulation: ±3% for CLT models; ±1% for ILT models
Isolation: Complete from line; output neutral requires bonding to ground
Output Wave Form: Sine Wave; 3% THD
Output Overload Protection: Inherent with ferroresonant technology – current limiting
Response Time: Instantaneous (no measurable delay)
Line Interruption: Full output voltage maintained for 3 milliseconds
Short Circuit Protection: Approximately 200% of load current; no damage will occur
Safety: UL and CSA on CLT models through 15KVA
Warranty: 3 years on CLT models; 1 year on ILT models
Controls: Hard-wired, none provided

Click here to download a PDF document for more information on CLT/ILT models.

PCLC Series Plug-In Power Conditioners

Specifications
Lightning and Surge Protection: Passes ANSI/IEEE C62.41. Categories A and B
Noise (RF) Isolation: 120 dB common mode; 60 dB normal mode
Input Voltage: 120VAC +10% / -20%
Output Voltage Regulation: ±5%
Isolation: Complete from line; output neutral bonded to ground
Output Wave Form: 5%
Output Overload Protection: Inherent with ferroresonant technology
Response Time: Instantaneous (no measurable delay)
Line Interruption: Full output voltage maintained for 3 milliseconds
Short Circuit Protection: Approximately 200% of load current; no damage will occur
Safety: UL and CSA certified
Warranty: 3 years
Controls: On/off switch (except PCLC110)

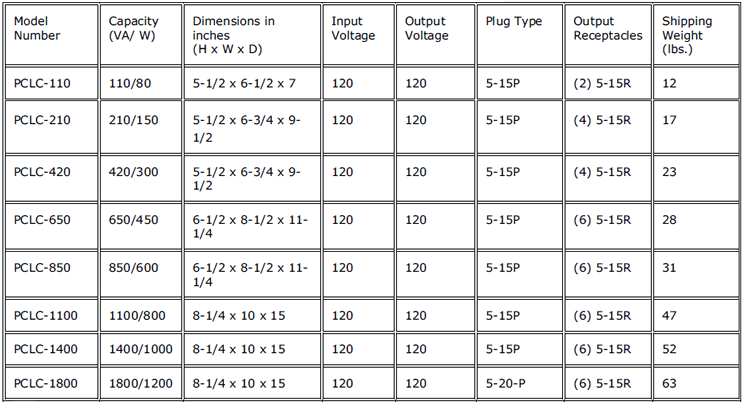

PCLC Series Plug-In Power Conditioners

Additional line conditioning products, including 50HZ models are available. Please contact us for more information.
